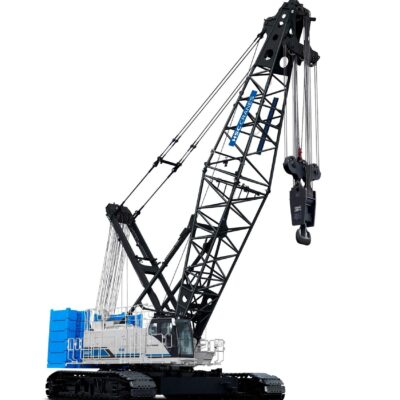

SCX2800A-3 Crawler Crane
Features
Further, Higher. New 275 t
Building a better society for all, helping to make tomorrow brighter. To achieve such objectives, HSC embarked on development of the 275 t class crawler crane by endowing it with performance to meet a new day and age. Power and precision were of course elements deemed essential for reliable work, but HSC went above and beyond to incorporate additional features: better assembly to boost work efficiency; pioneering fuel efficiency and eco-friendly design; and safety and comfort for both crane operators and site operations. The new SCX2800A-3 delivers a superior level of performance in a more user-friendly package - all for building a better tomorrow. And with time-tested quality and sophisticated capability, the new SCX2800A-3 is all about reaching for higher goals around the world.
Specifications
| Liftcrane | Values |
|---|---|
| Max. lifting load × Working radius | 275 t - 4.3 m |
| Boom length | 15.2 - 91.4 m |
| Crane jib length | 12.2 - 36.5 m |
| Boom + crane jib length | 70.1 + 36.5 m |
| Luffing Towercrane | Values |
|---|---|
| Max. lifting load×Working radius | 80 t x 9.3 m |
| Tower length | 21.3 - 60.9 m |
| Tower jib length | 21.3 - 60.9 m |
| Tower + jib length | 60.9 + 60.9 m |

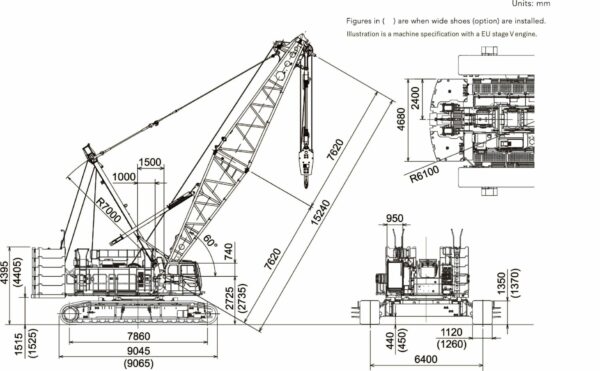

Dimensions
